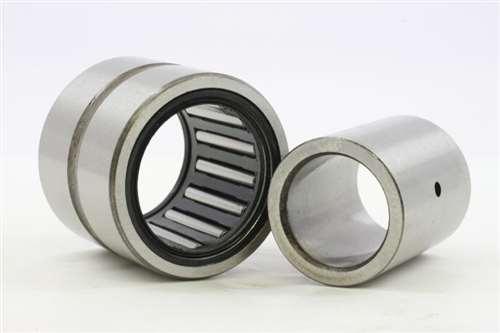

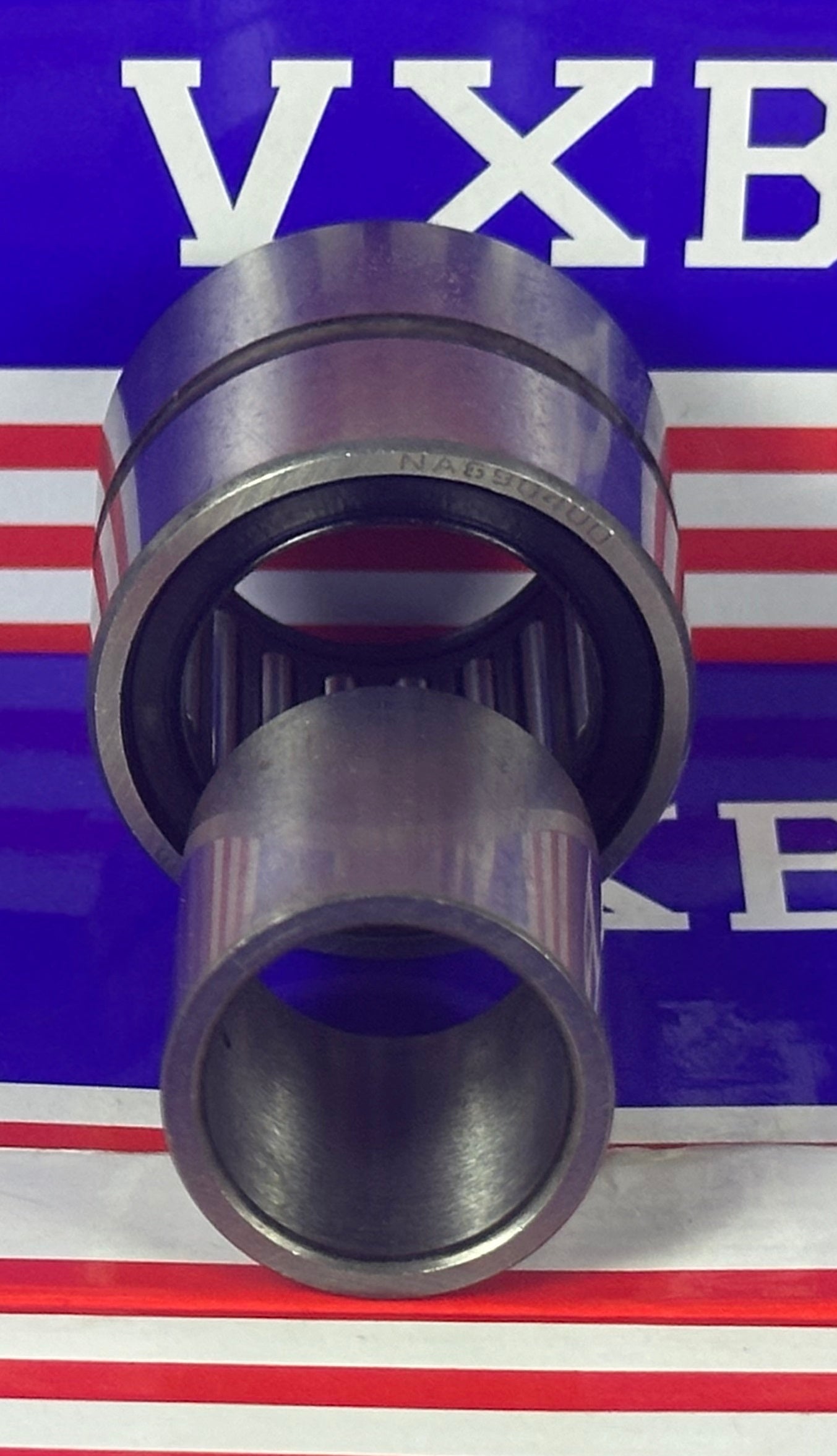

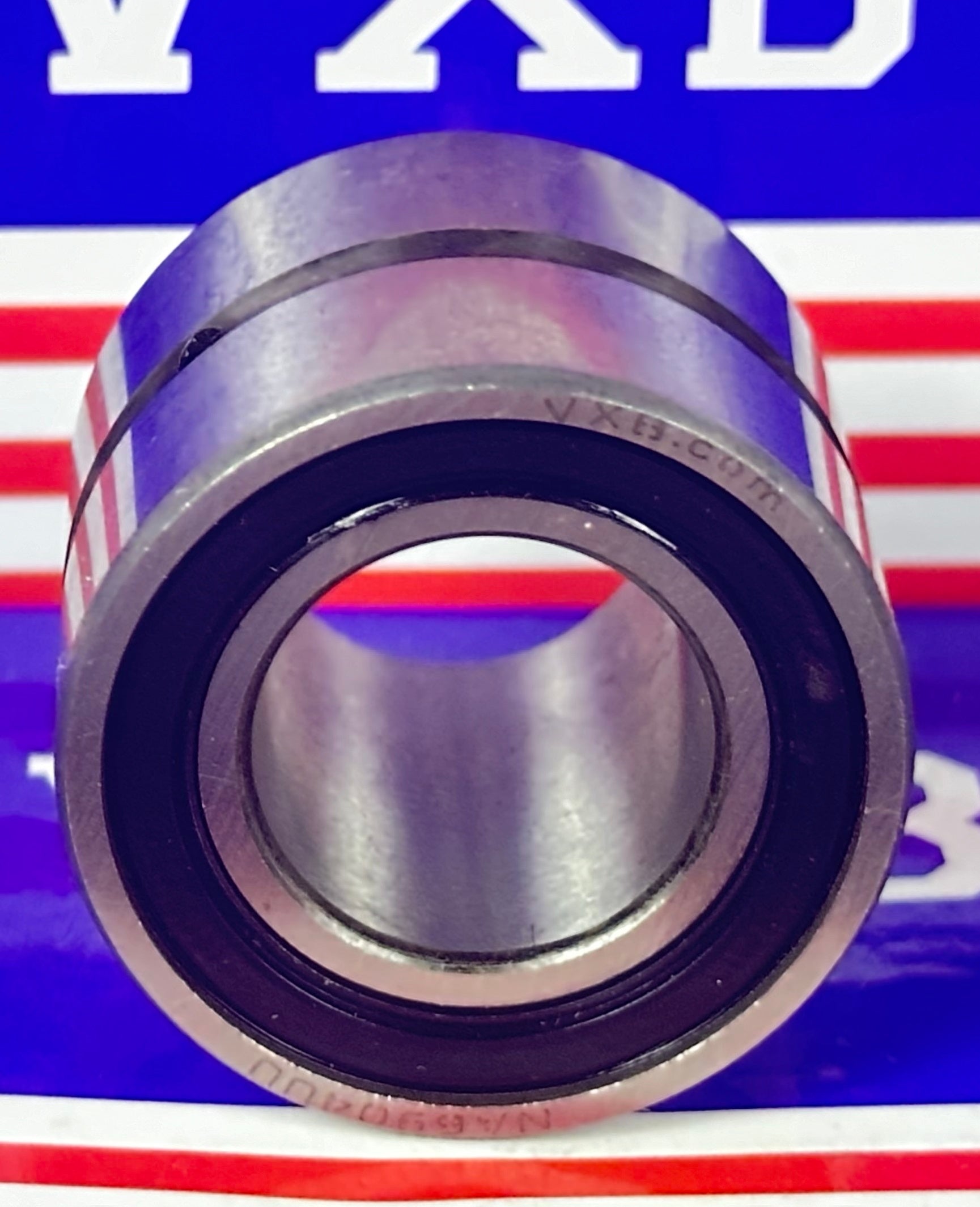

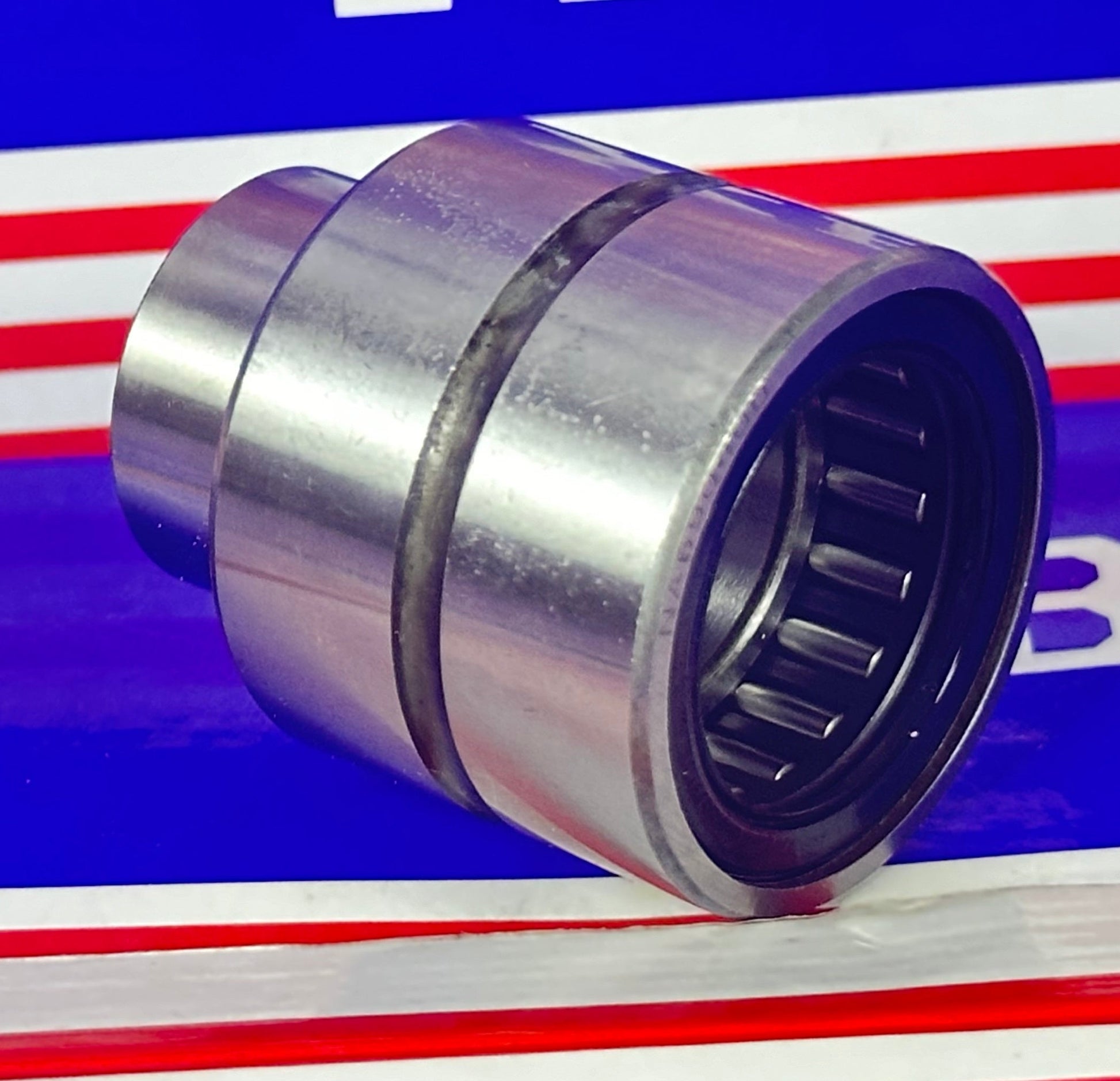

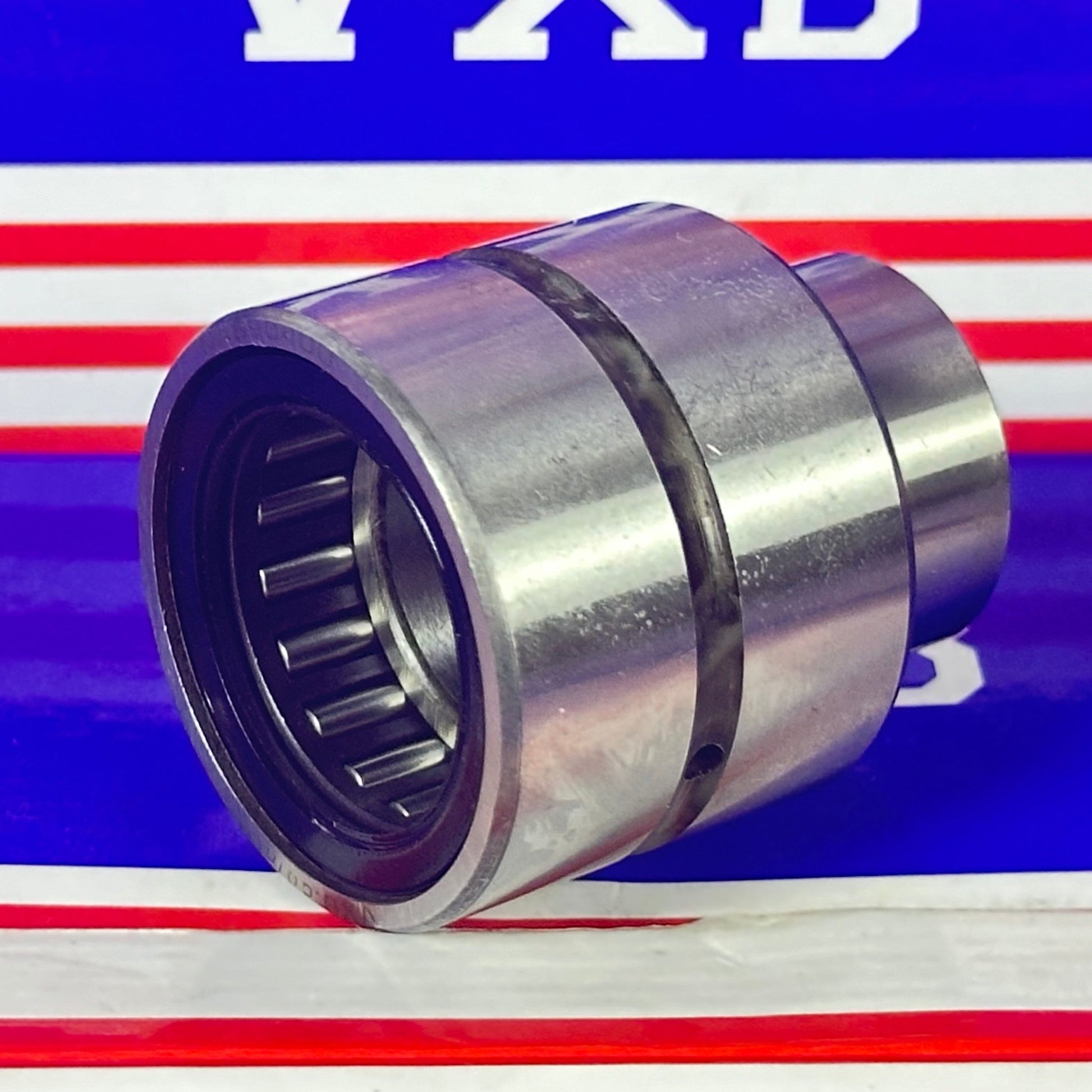

Machined needle roller bearing NA6904UU, the inner diameter is 20mm, the outer diameter is 37mm, width of the cone (inner ring) is 31mm, and the outer ring width is 30mm.
- Item: NA6904UU Bearing
- Type: Needle Roller Bearing
- Closures: Rubber Sealed (both sides)
- Dimensions: 20mm x 37mm x 31mm /Metric
- ID (inner diameter)/Bore: 20mm
- OD (outer diameter): 37mm
- inner ring: 31mm
- outer ring: 30mm
- Size: 20mm x 37mm x 31mm
- Quantity: One Bearing
- Basic Dynamic Load Rating: 3,370 KGF
- Basic Static Load Rating: 4,540 KGF
| Dimensions |
|---|
| d |
dr |
D |
B |
B1 |
| 20mm |
25mm |
37mm |
30mm |
31mm |
|
