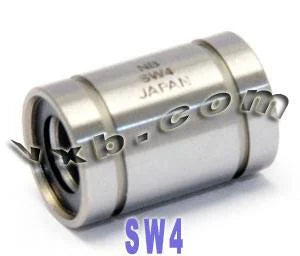

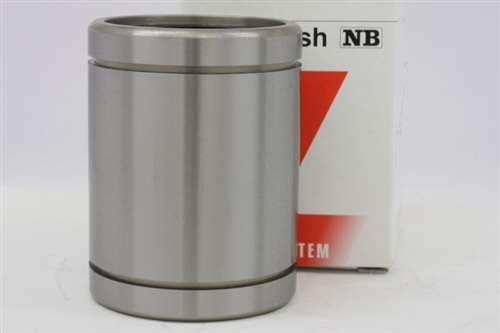

NB Systems SW4 1/4" inch Ball Bushings Linear Motion

SW4:Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

SW4 1/4" Bore linear motion ball bushings/bearings, inner diameter(bore) is 1/4" inch dimensions with steelretainer, Bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

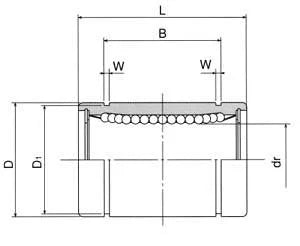

Item	Number of ball circuits	Dimensions(Inches)											Eccentricity		radial clearance	basic load rating
		dr			D		L		B		W	D1	Eccentricity			basic load rating
		inch	tolerance inch/mm		inch	tolerance inch/mm	inch	tolerance inch/mm	inch	tolerance inch/mm			precision inch/mm	high inch/mm		dynamic CN	static CoN
		inch	precision	high	inch	tolerance inch/mm	inch	tolerance inch/mm	inch	tolerance inch/mm			precision inch/mm	high inch/mm		dynamic CN	static CoN
SW4	4	.2500	0 -.00025	0 -.00040	.5000	0 -.00045	.7500	0 -.008	.5110	0 -.008	.0390	.4687	.0003 8	.0005 12	.0001 -3	206	265
