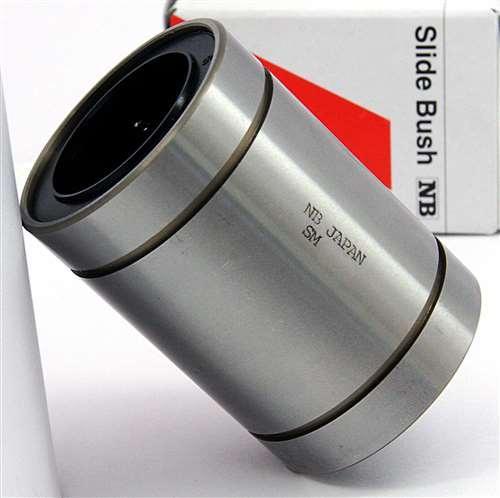

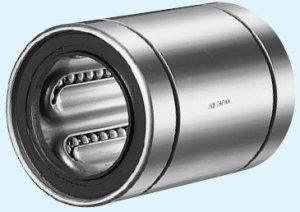

NB SW6G 3/8 inch Ball Bushings Linear Motion

Name: NB SW6G 3/8 inch Ball Bushings Linear Motion
Brand: NB
SKU: Kit13883
Price: 37.99 USD
Availability: InStock

$37.99 USD

Sale Sold out

Quantity

SW6G:Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

SW6G NB Systems Ball Bushings Linear Motion, 3/8" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 3/8" inch dimensions with a resin retainer, bearing is high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

Item: SW6G Linear Motion Ball Bushings
Type: NB Systems Ball Bushings Linear Motion
Quantity: One Bearing

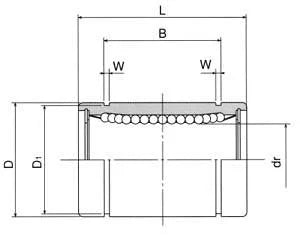

Item	Number of ball circuits	Dimensions(Inches)											Eccentricity		radial clearance	basic load rating
		dr			D		L		B		W	D1	Eccentricity			basic load rating
		inch	tolerance inch/mm		inch	tolerance inch/mm	inch	tolerance inch/mm	inch	tolerance inch/mm			precision inch/mm	high inch/mm		dynamic CN	static CoN
		inch	precision	high	inch	tolerance inch/mm	inch	tolerance inch/mm	inch	tolerance inch/mm			precision inch/mm	high inch/mm		dynamic CN	static CoN
SW6G	4	3/8"	0 -.00025	0 -.0004	5/8"	0 -.0005	7/8"	0 -.008	0.635"	0 -.008	0.039	0.588"	.0003 8	.0005 12	.0001 -3	225	314
