NB TWA16WUU 1 inch Ball Bushing Block Linear Motion

Name: NB TWA16WUU 1 inch Ball Bushing Block Linear Motion
Brand: NB
SKU: Kit7995
Price: 346.99 USD
Availability: InStock

$346.99 USD

Sale Sold out

Quantity

TWA16WUU:Slide Unit
Pillow Block
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

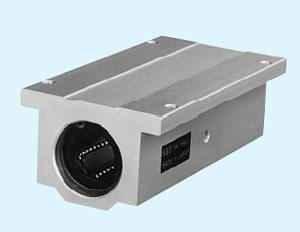

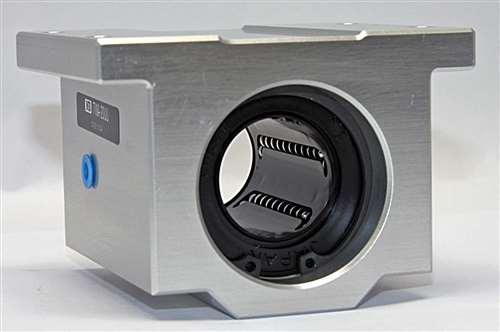

1" Double Wide Block, Slide Unit Pillow Block (Inch Series), the inner diameter(bore) 1" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

Item: TWA16WUU Shaft Support
Type: Nippon Bearing Linear Systems
Shaft diameter: 1" Inch
Dynamic Load Rating: 3336 N
Static Load Rating: 5250 N
made in Japan

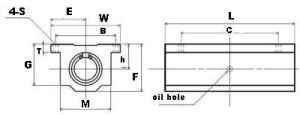

Major Dimensions (inches)								Mounting Dimensions
h	E	W	L	F	T	G	M	B	C	S
3/16"	1-5/8"	3-1/4"	6"	2-3/16"	3/8"	1-15/16"	2-3/8"	2-7/8"	4-1/2"	7/32"
