NF40 40mm Roller Type Freewheel One Way Clutch 40x110x63

NF40 40mm Roller Type Freewheel One Way Clutch 40x110x63

Regular price $376.99 USD
Regular price Sale price $376.99 USD
Sale Sold out

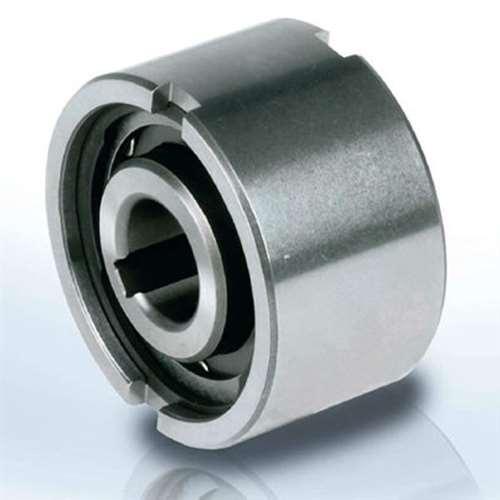

NF40 One Way Clutch
40x110x63




NF40 is a one-way clutch. One way Clutch Freewheel and also called as Backstops. NF40 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • Item: NF40
  • Type: One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • non-bearing supported, External Bearing Support Required
  • Dimensions: 40mm x 110mm x 63mm/metric
  • Inner Diameter: 40mm
  • Outer Diameter: 110mm
  • Width: 63mm
  • Quantity: One Clutch

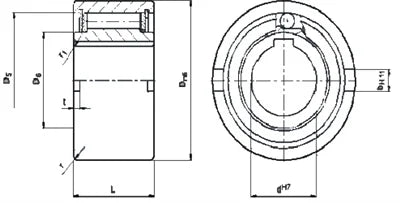

Dimension (mm)
dH7 T 1) n 2) n 3) D n6 D 5 D 6 L t b r r1
40 1100 1250 1700 110 90 62 63 7 15 3.0 2.5
