NFS30 is a one-way clutch. One way Sprag/Clutch Freewheel and also called as Backstops. NFS30 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
- Item: NFS30
- Type: One Way Clutch
- Applications: Overrunning, Indexing, Backstopping
- non-bearing supported, External Bearing Support Required
- Dimensions: 30mm x 72mm x 27mm/metric
- Inner Diameter: 30mm
- Outer Diameter: 72mm
- Width: 27mm
- Torque: 204 TKN
- Max Torque: 510 TKN
- Inner Race Overrun: 1,400 RPM
- Outer Race Overrun: 2,200 RPM
- Quantity: One Clutch

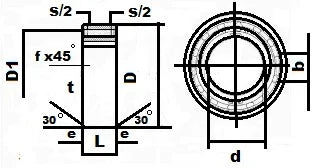

Dimension (mm) |
| d |
D |
L |
D2 |
b |
t |
s |
e |
f |
| 30 |
72 |
27 |
60 |
10 |
2.5 |
2.4 |
1.8 |
1 |
|
