NSS45 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. NSS45 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
- Item: NSS45 Clutch
- Type: One Way Clutch
- Applications: Overrunning, Indexing, Backstopping
- Dimensions: 45mm x 85mm x 19mm/metric
- Inner Diameter: 45mm
- Outer Diameter: 85mm
- Width: 19mm
- Torque: 174 TKN
- Resistance Torque: 11 Tr
- Inner Race Overrun: 1,000 RPM
- Outer Race Overrun: 1,600 RPM
- Quantity: One Clutch

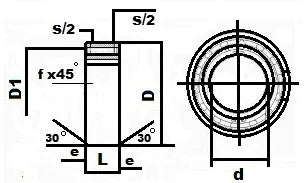

Dimension (mm) |
| d |
D |
D1 |
L |
s |
e |
f |
| 45 |
85 |
77 |
19 |
2.5 |
1.2 |
1 |
|
