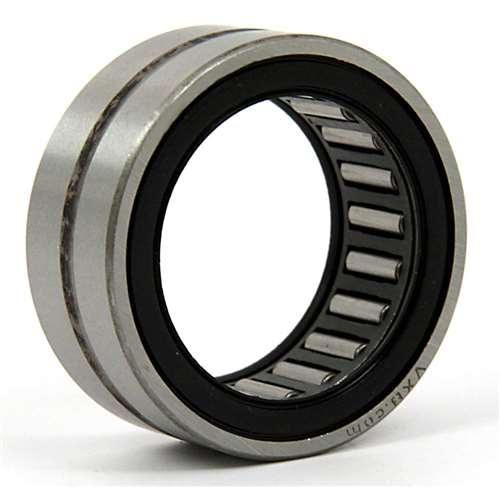

RNA4903UU Needle Roller Bearing 22x30x13

Machined needle roller bearing RNA4903UU , the inner diameter is 22mm, the outer diameter is 30mm and width is 13mm.

• Item: RNA4903UU Bearing
• Type: Needle Roller Bearing
• Closures: Rubber Sealed (both sides)
• Dimensions: 22mm x 30mm x 13mm /Metric
• ID (inner diameter)/Bore: 22mm
• OD (outer diameter): 30mm
• Width/Height/thickness: 13mm
• Size: 22mm x 30mm x 13mm
• Quantity: One Bearing
• Basic Dynamic Load Rating: 1,050 KGF
• Basic Static Load Rating: 1,340 KGF




  Dimensions
  dr	D	B
  22mm	30mm	13mm
