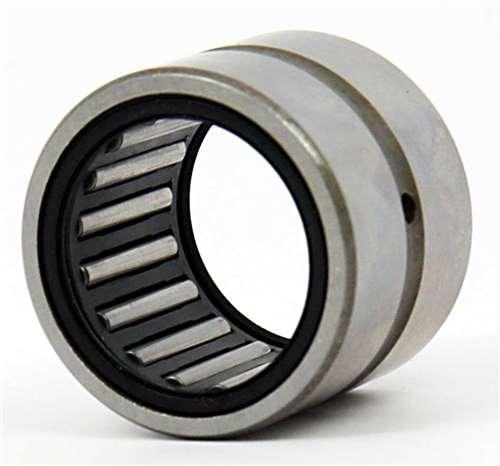

RNA6900UU Needle Roller Bearing 14x22x22

Machined needle roller bearing RNA6900UU, the inner diameter is 14mm, the outer diameter is 22mm and width is 22mm.

• Item: RNA6900UU Bearing
• Type: Needle Roller Bearing
• Closures: Rubber Sealed (both sides)
• Dimensions: 14mm x22mm x 22mm /Metric
• ID (inner diameter)/Bore: 14mm
• OD (outer diameter): 22mm
• Width/Height/thickness: 22mm
• Size: 14mm x22mm x 22mm
• Quantity: One Bearing
• Basic Dynamic Load Rating: 2,545 LBF
• Basic Static Load Rating: 4,020 LBF




  Dimensions
  dr	D	B
  14mm	22mm	22mm
