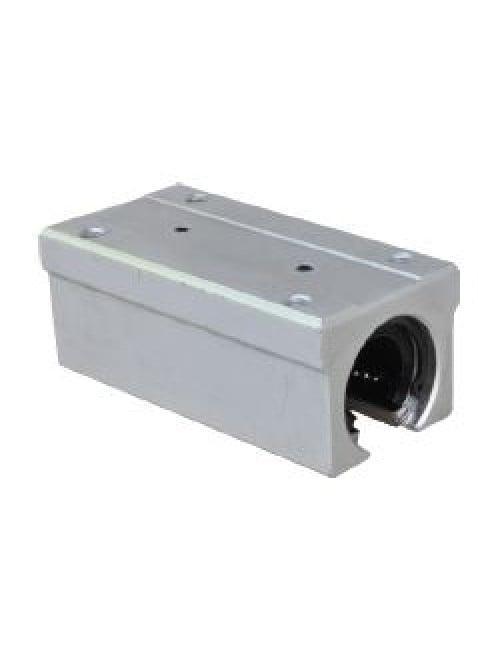

SME20LUU 20mm Open Block Unit Motion Linear Bearings

SME20LUU 20mm Open Block Unit Motion Linear Bearings

$29.99 USD
$29.99 USD
Sale Sold out
SME20LUU Open Block Type:Slide Unit
Bearing Linear Systems






SME20LUU Open Block Slide Unit, The inner contact diameter is 20mm, The retainer material is resin, Series mainly used in the USA

  • Item: SME20LUU Bearing
  • Type: Linear Ball Bushing
  • Inner Contact Diameter: 20mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 2740N
  • Static load rating Cor: 1400 N

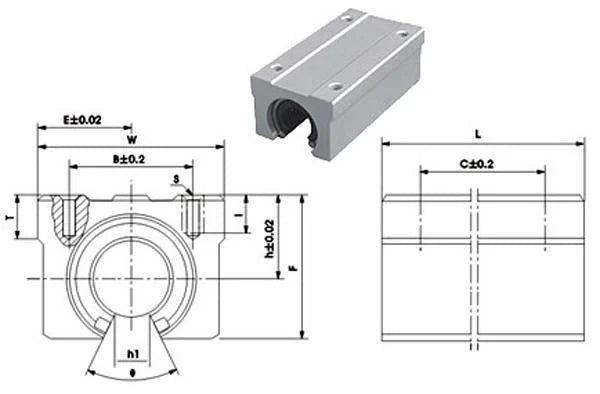

Shaft Diameter Main Dimensions (mm) Mounting Dimensions (mm)
h e W L F T h1 B C S I
20mm 23 24 48 96 39 11 10 35 70 M6 12
