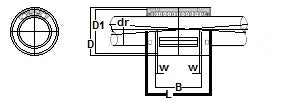

TK10UU NB Self Aligning 10mm Ball Bushing with Seals Linear Motion

TK10UU NB 10mm Bore Standard Top Ball type sealed linear motion ball bushings bearings, inner diameter(bore) is 10mm dimensions with built-in seals, the Topball slide bush is a high performance bushing with three times the load capacity, capable of providing up to 27 times normal travel life of a conventional slide bushing, high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

• Item Name: TK10UU NB Bearing
• Type: NB Linear System Ball Bushing
• Shaft Diameter: 10mm
• Ball circuit: 5
• Dynamic Load Rating: 750 N
• Static Load Rating: 935 N
